Electric Bike Conversion Kit Front Wheel Motor 350W E-Bike Kit 36V Hub Motor 20″ Bicycle Controller with LCD Display Controller Brake
Specification
Color: Black, Silver
Material: Aluminum, Iron, Copper, Magnet Steel
Voltage: 36V
Power: 350W
Meter Type: LCD
Power Type: Lead-acid or Lithium Battery (Not Included)
Installation Position: Front

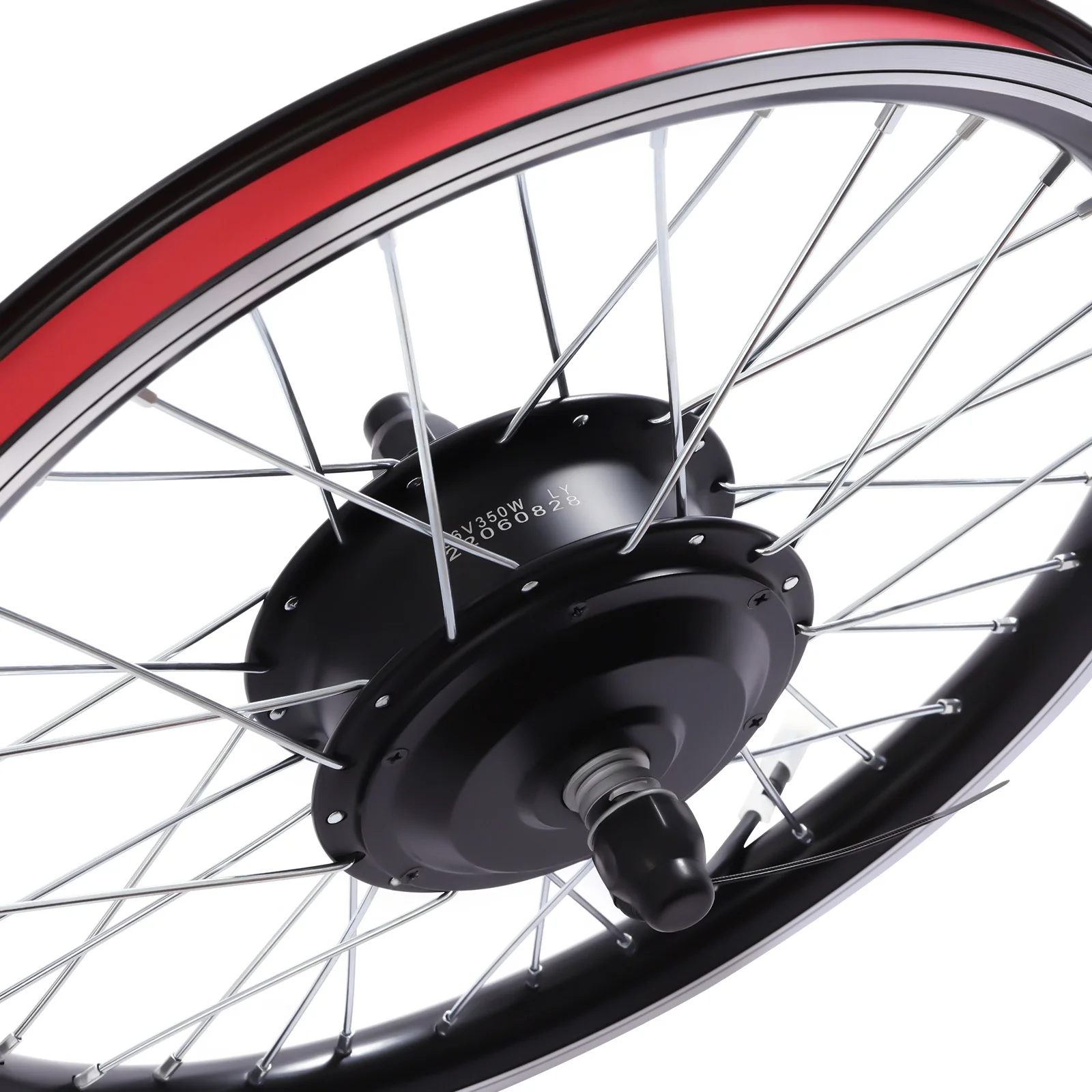

Motor Type: Brushless Gear Series Hub Motor
Motor Net Weight: 3-3.5kg/6.6-7.7lbs
Motor Diameter: 143mm/5.63inch
Motor Shaft Diameter: M14
Motor Shaft Length: 153mm/6.02inch
Motor Cable Length: 100cm/39.37inch
Number of Sensors: 3
Rated Speed: 300rpm
Rated Torque: 30nm
Flat Fork Width Requirement: Min. 100-110mm/3.94-4.33inch
Brake: Disc Brake Rotor Type Can be Installed 6 Screws
Braking Method: Disc Type
Corresponding Controller: 36V 350w Controller
Available Wheel Size: 20inch
Instrument Function: Fault Display, Speed Display, Mileage Display, Five-speed Booster Speed Control, and Battery Power Display
Efficiency: ≥82%
Motor Wheel No-load Speed: Max 28km/h
Motor Wheel Load Speed: Max 24km/h
Net Weight: 5kg/11lbs
Gross Weight: 7kg/15lbs
Package Size: 50*50*23cm/19*19*9inch

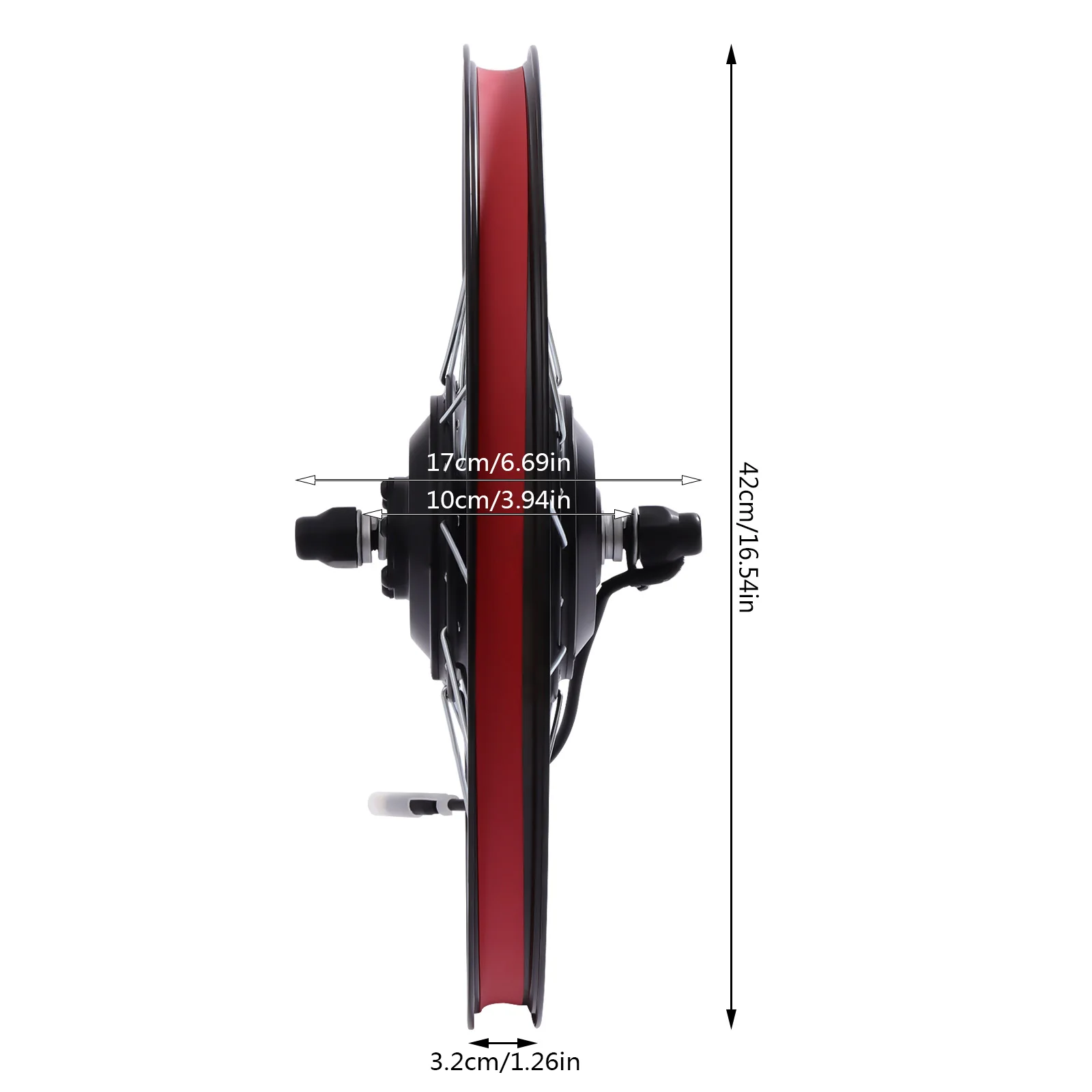

Wheel Diameter: 42cm/16.54inch
Wheel Width: 17cm/6.69inch

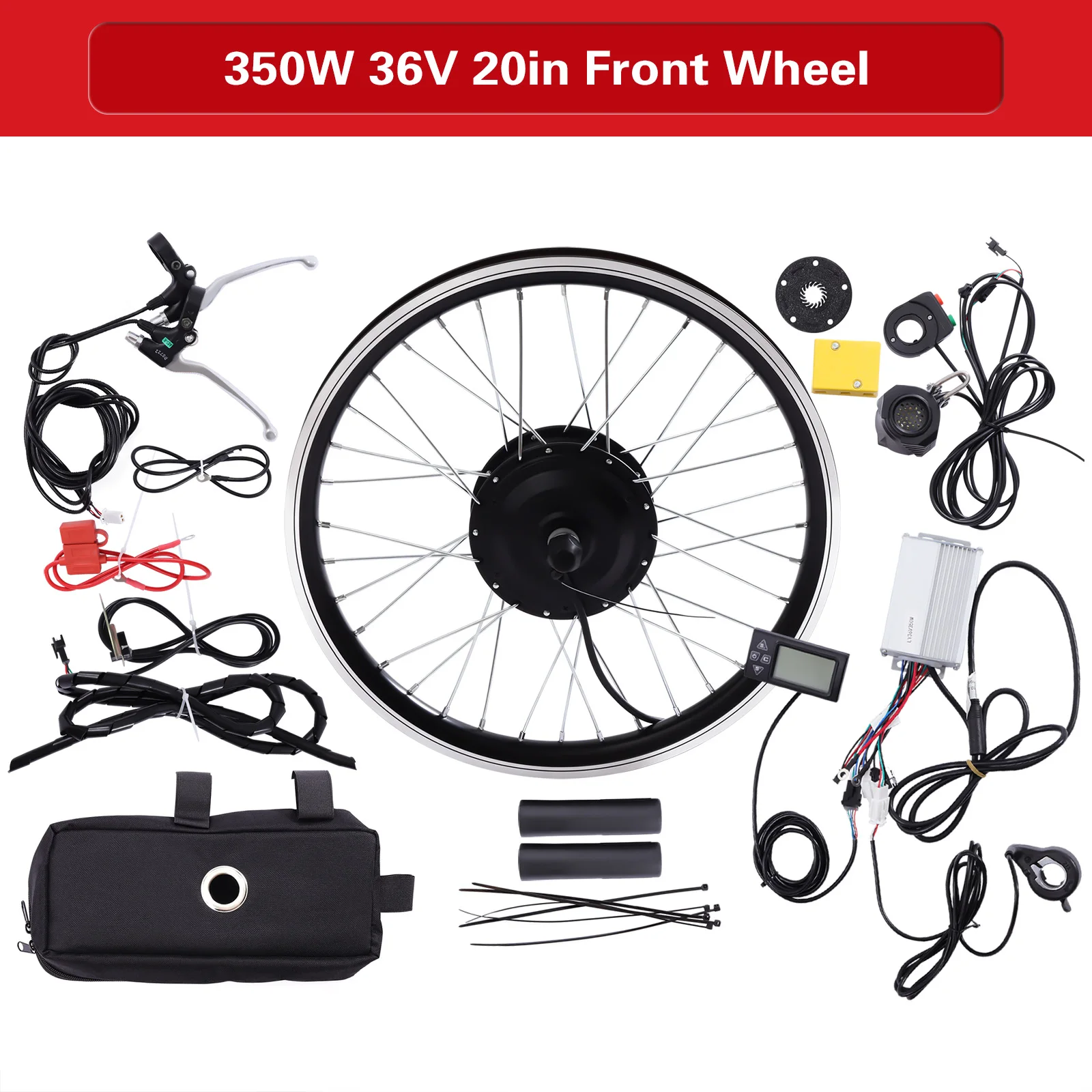

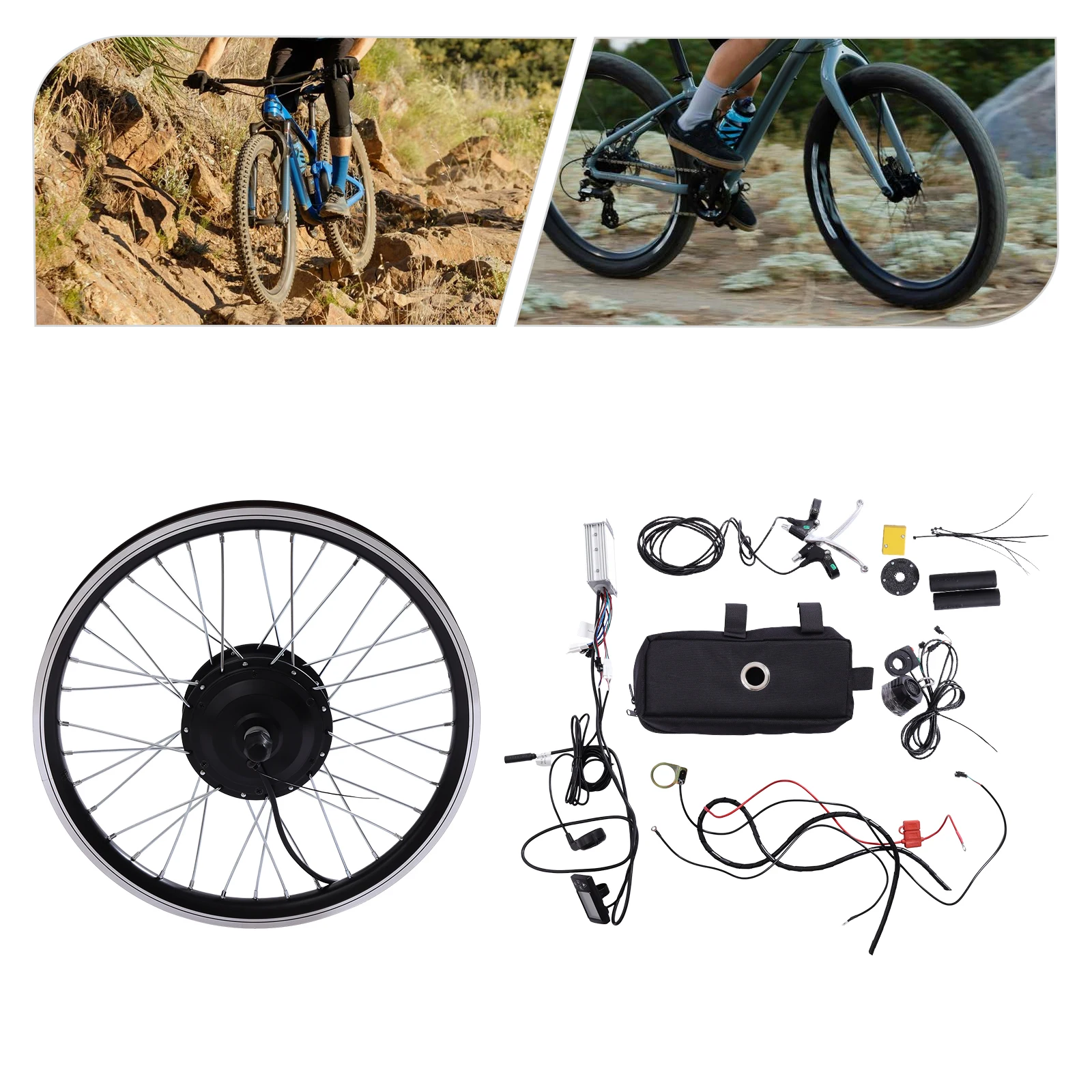

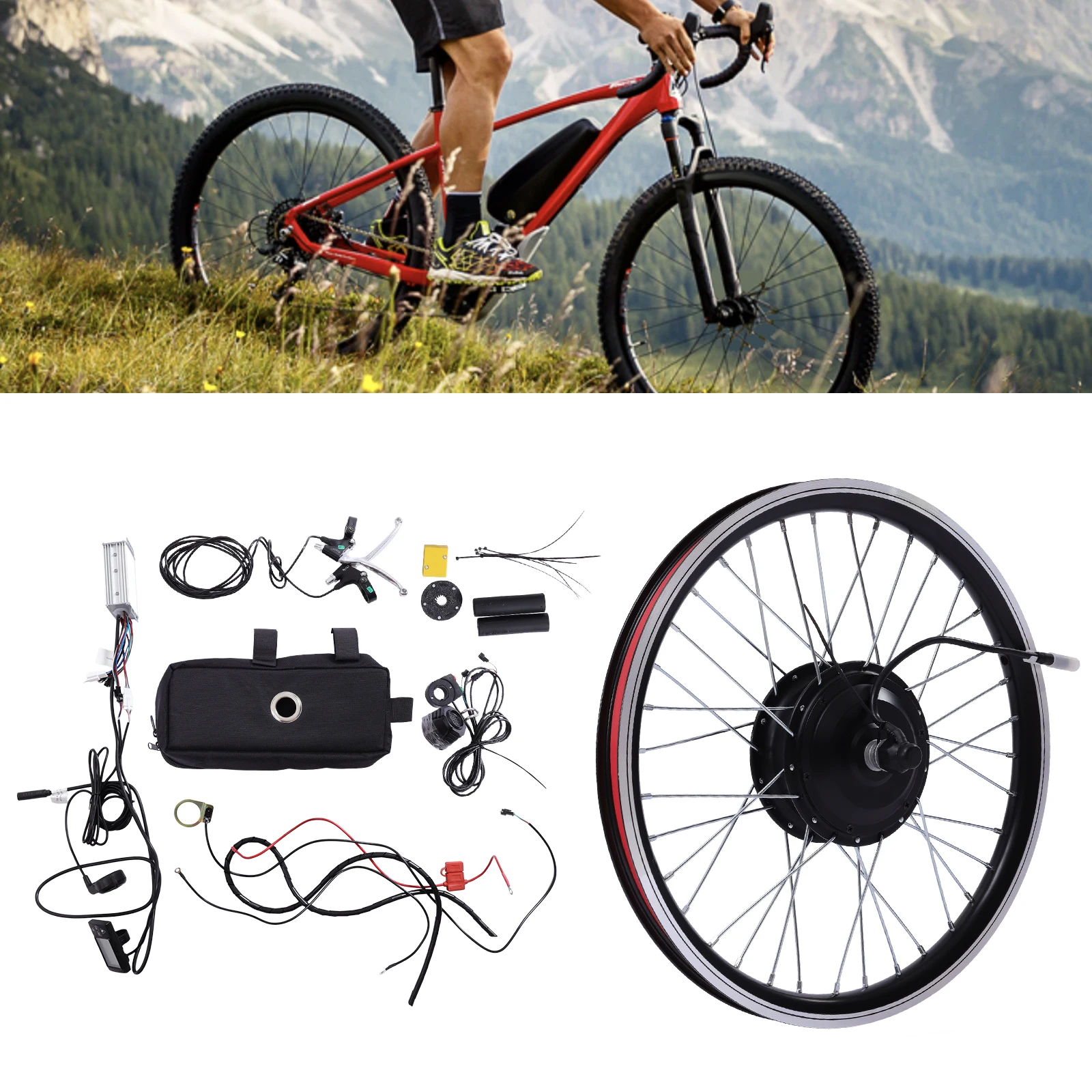

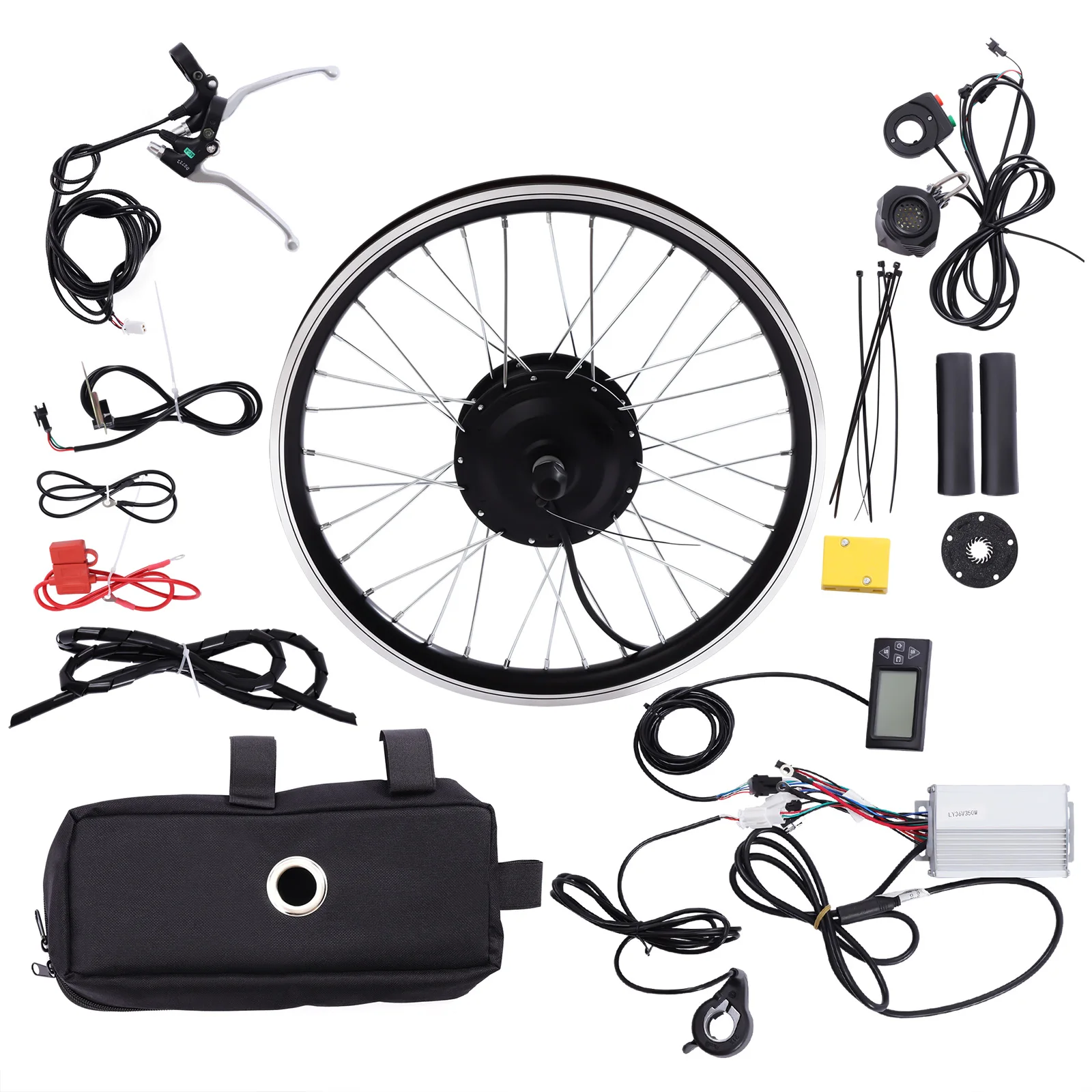

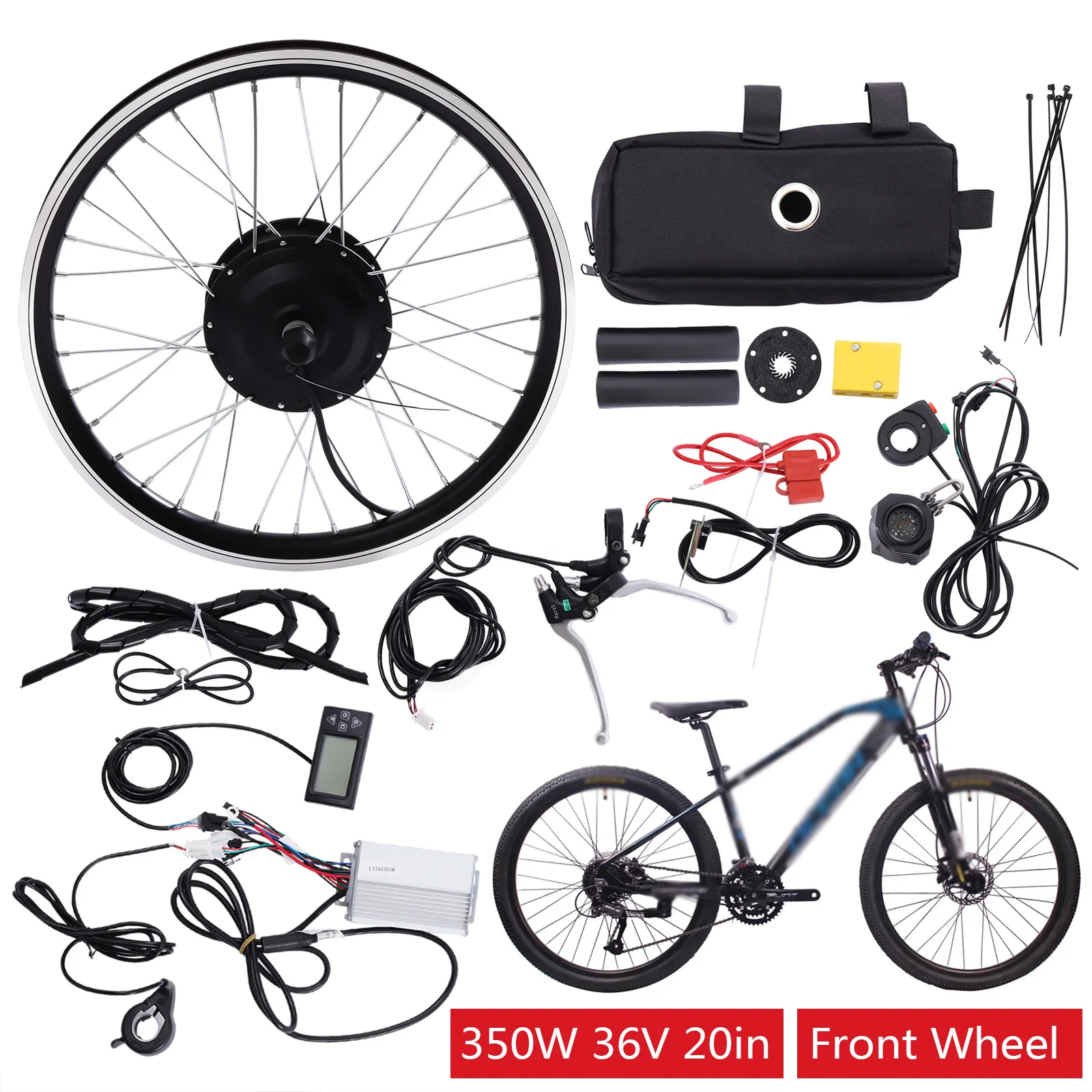

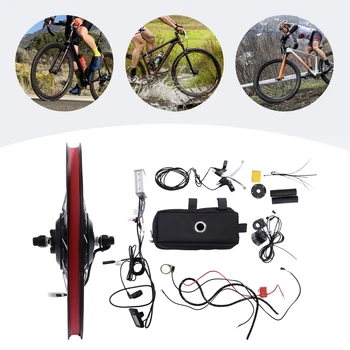

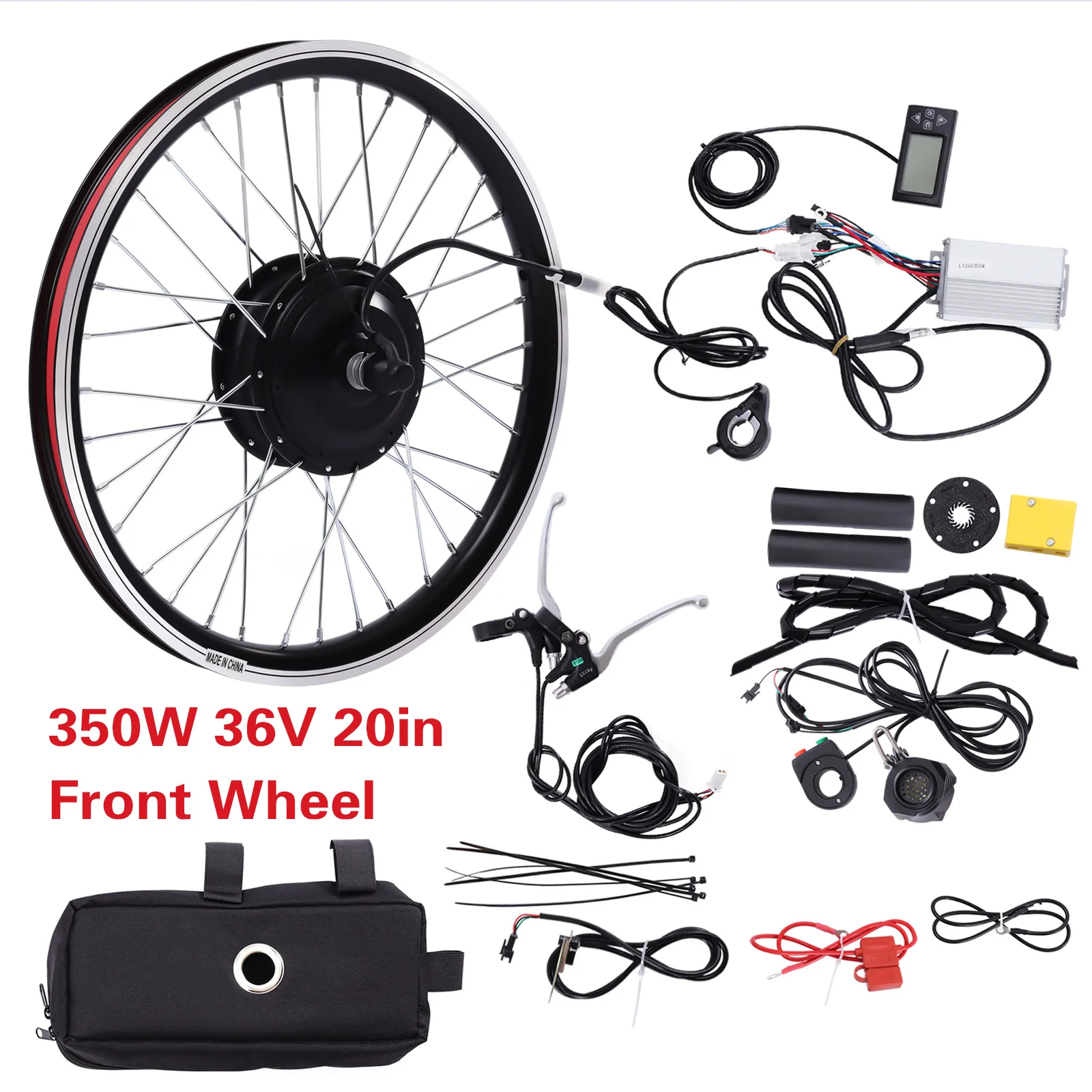

Package Included

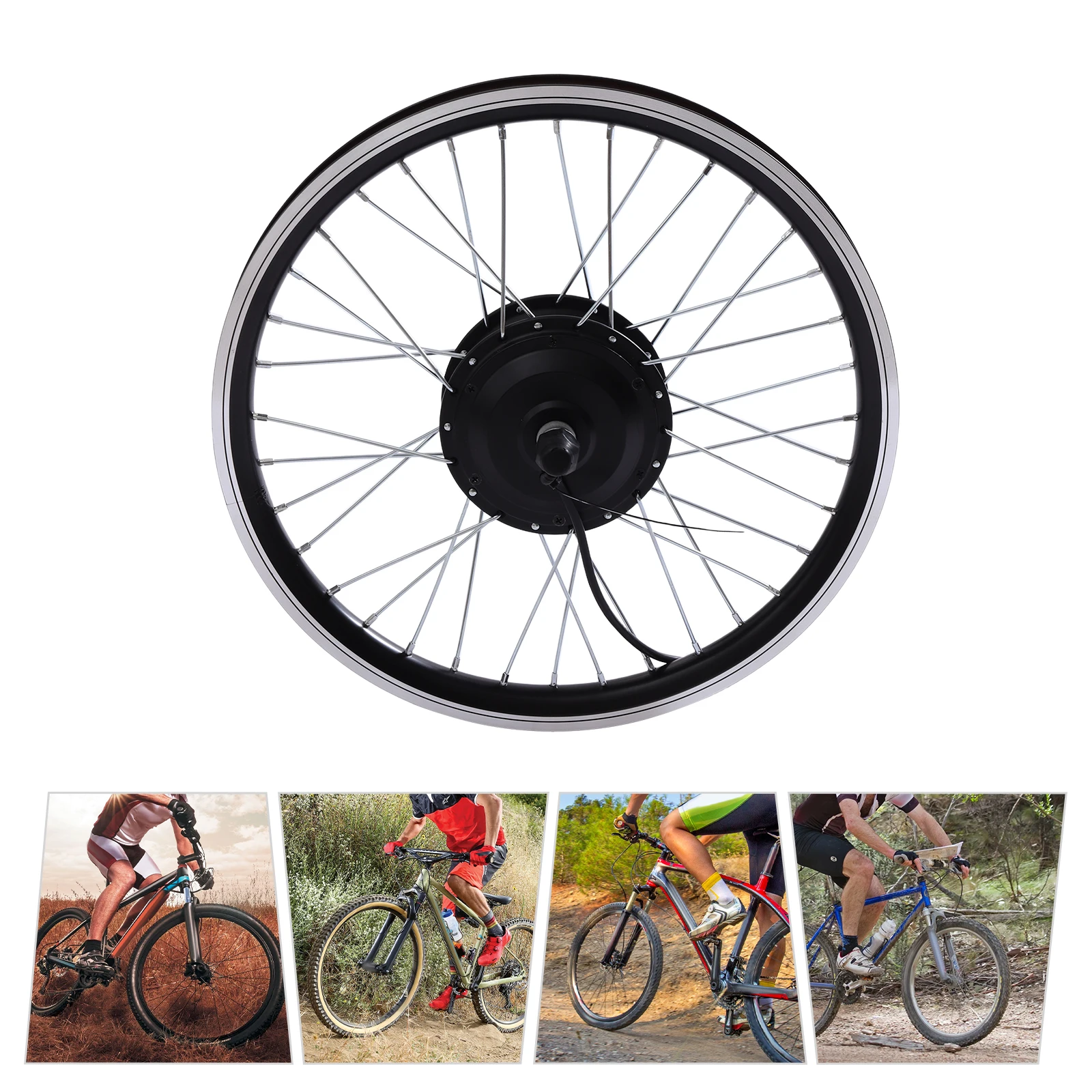

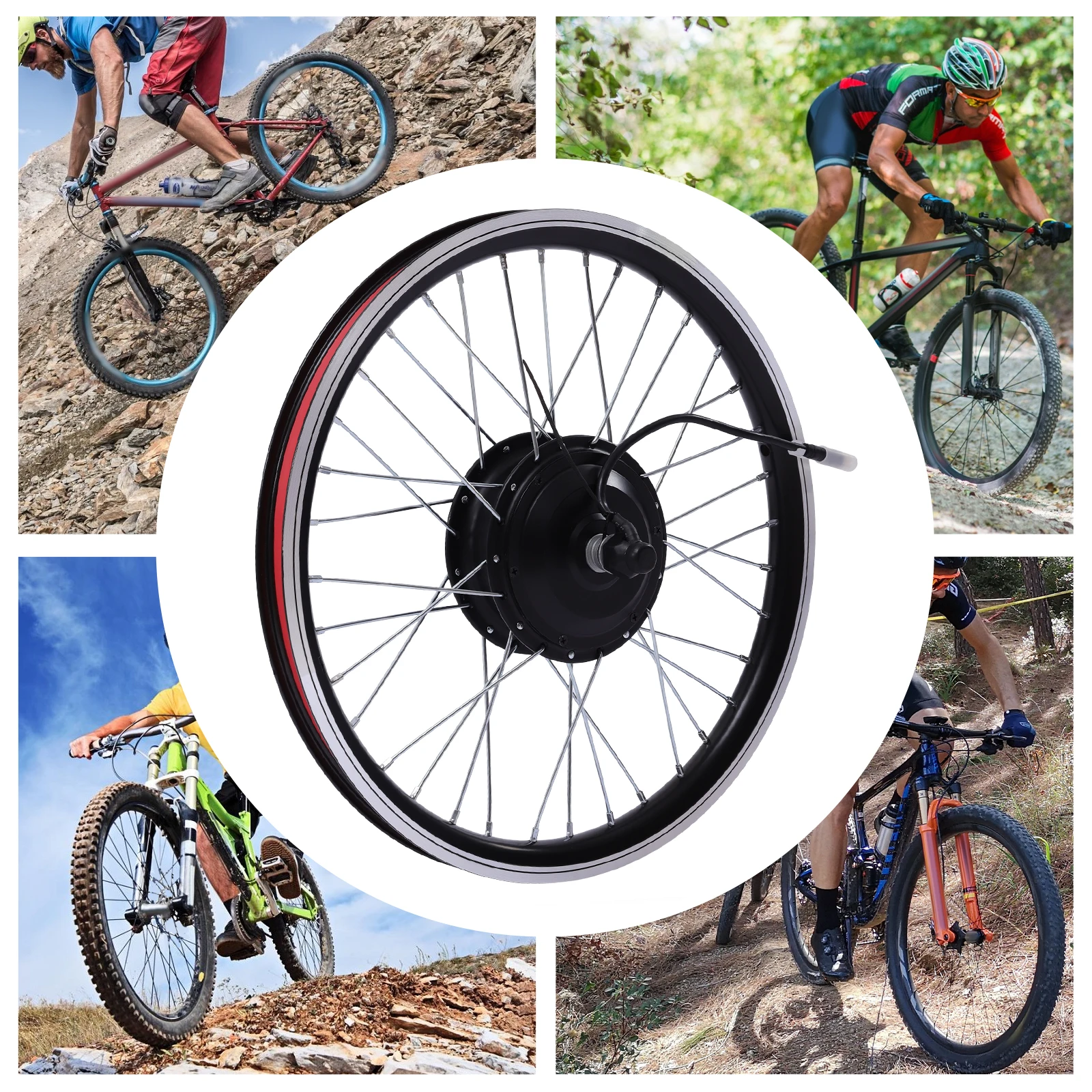

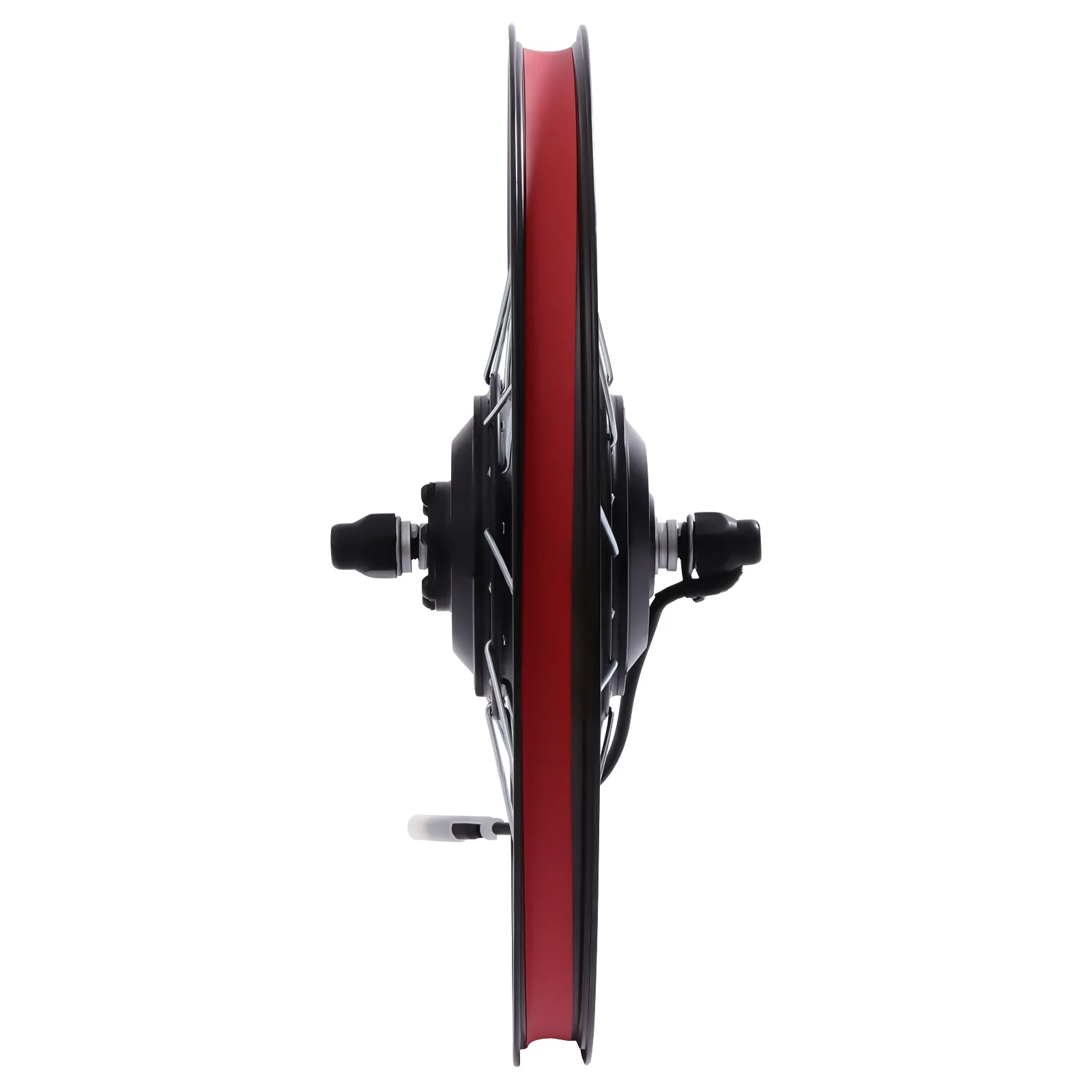

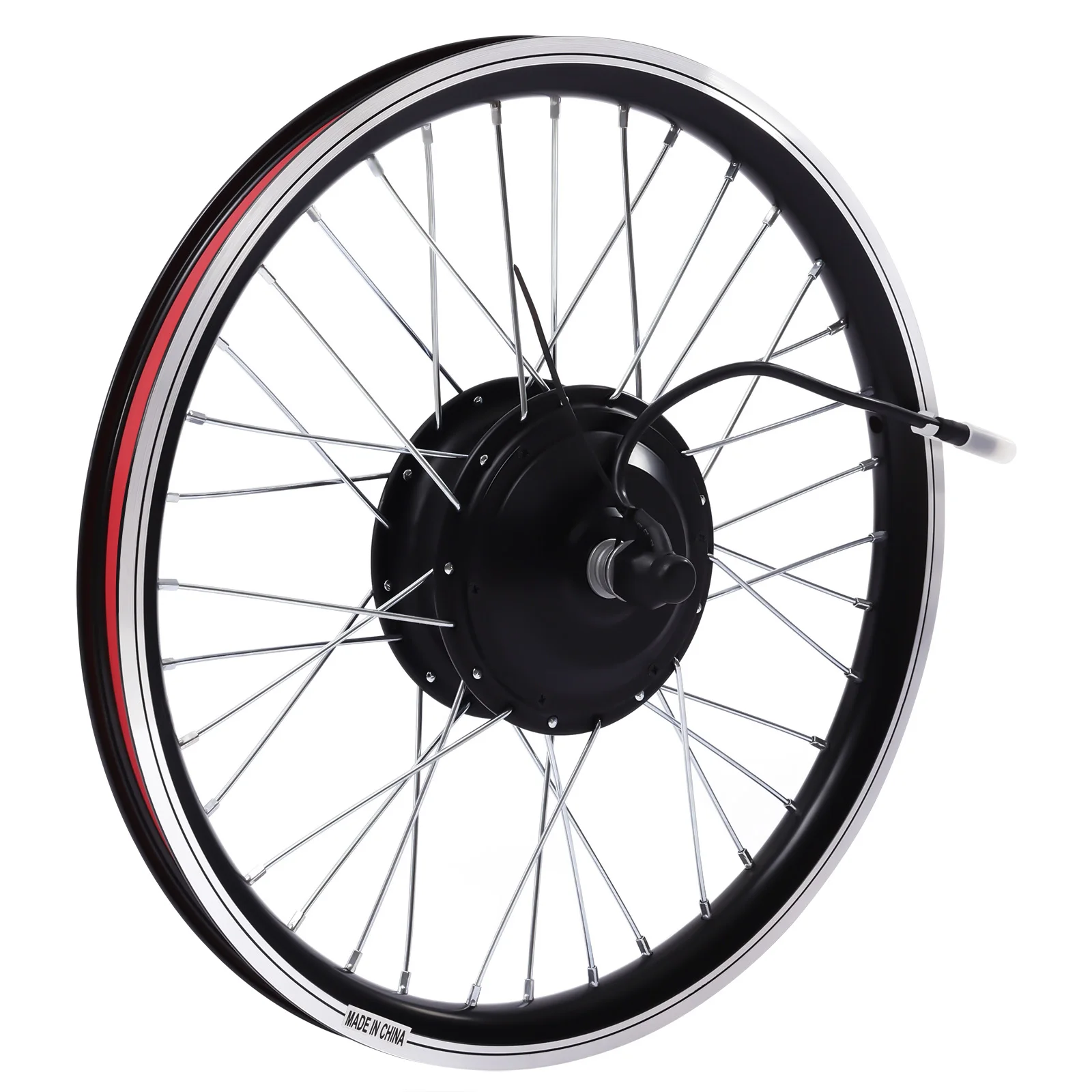

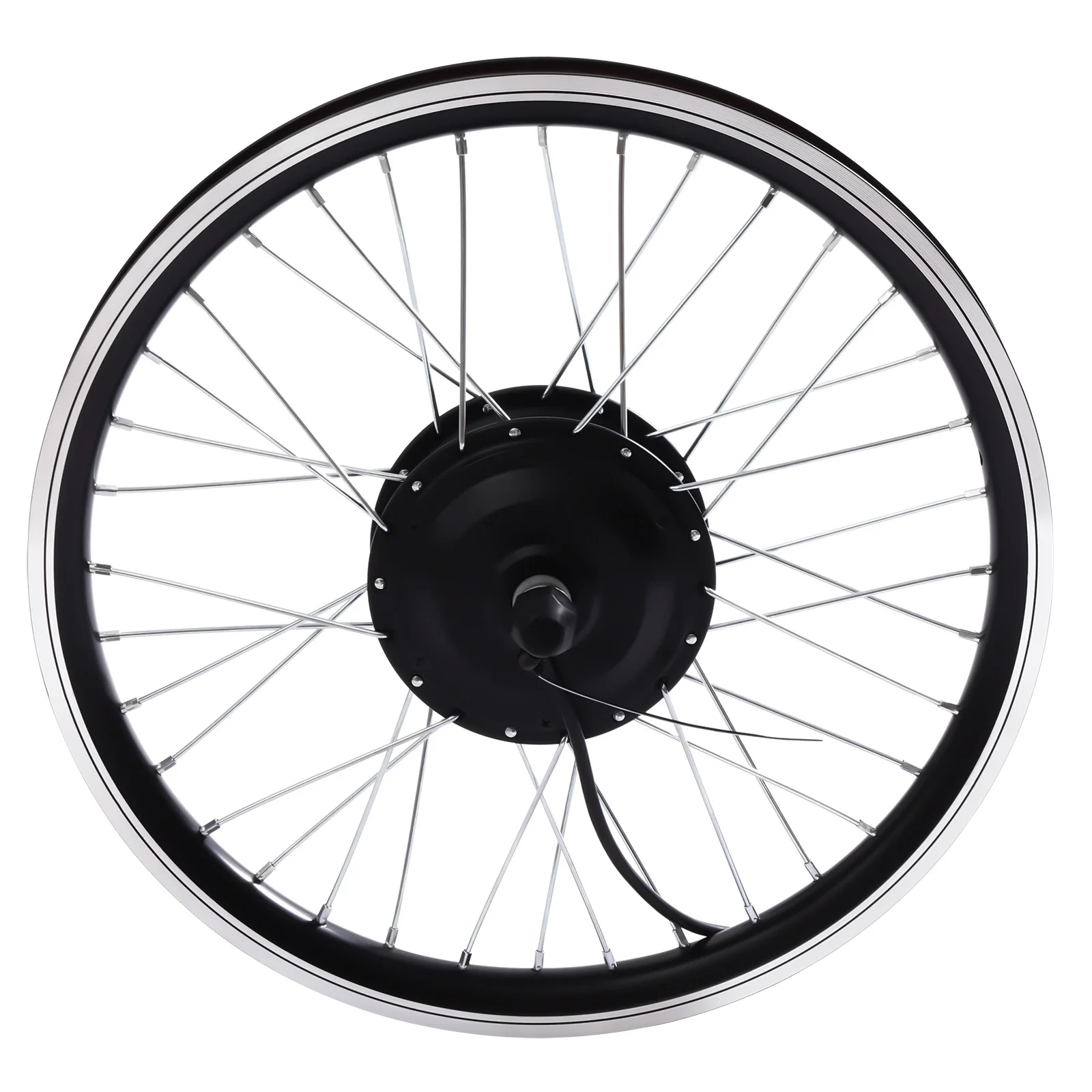

1* Front Motor Wheel

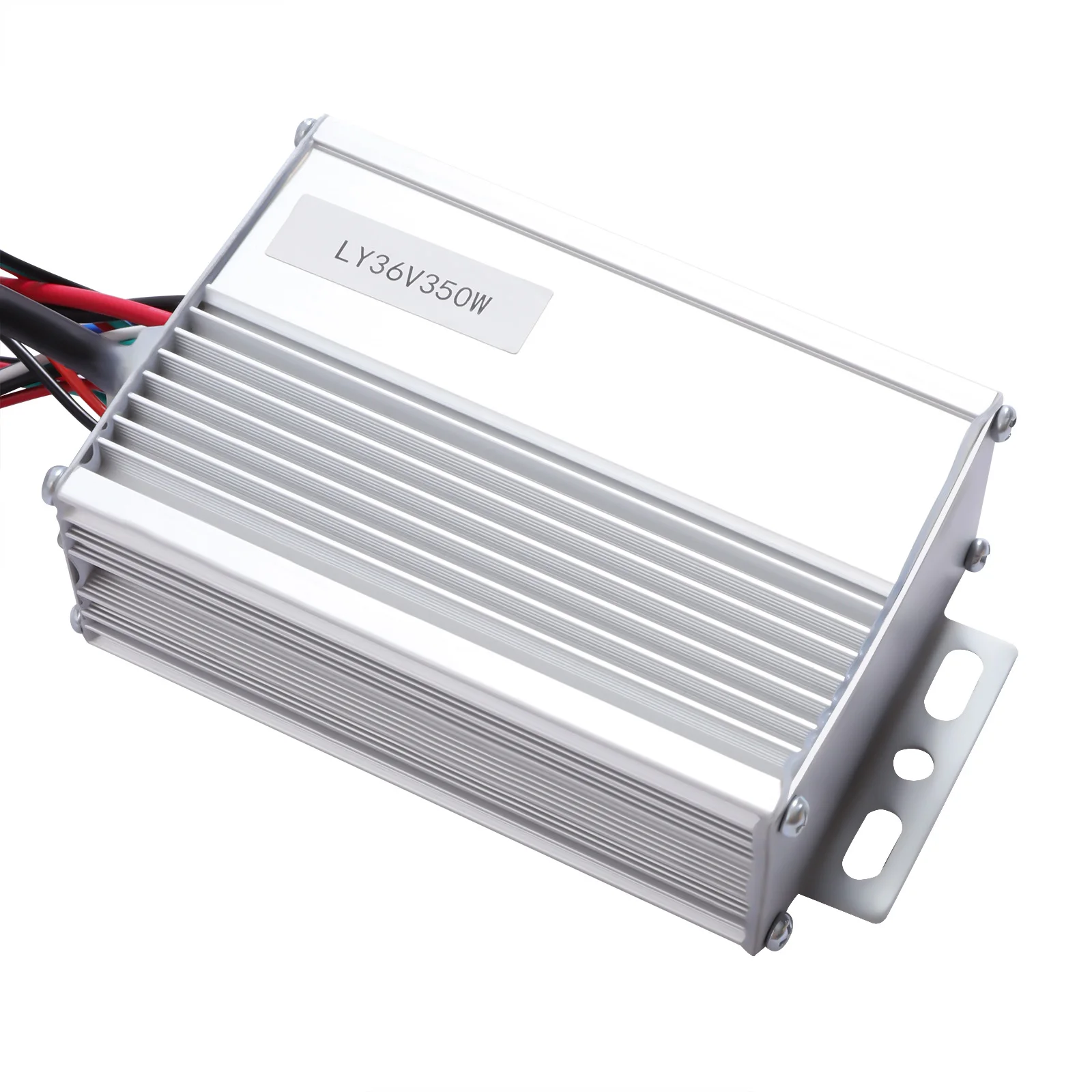

1* Controller

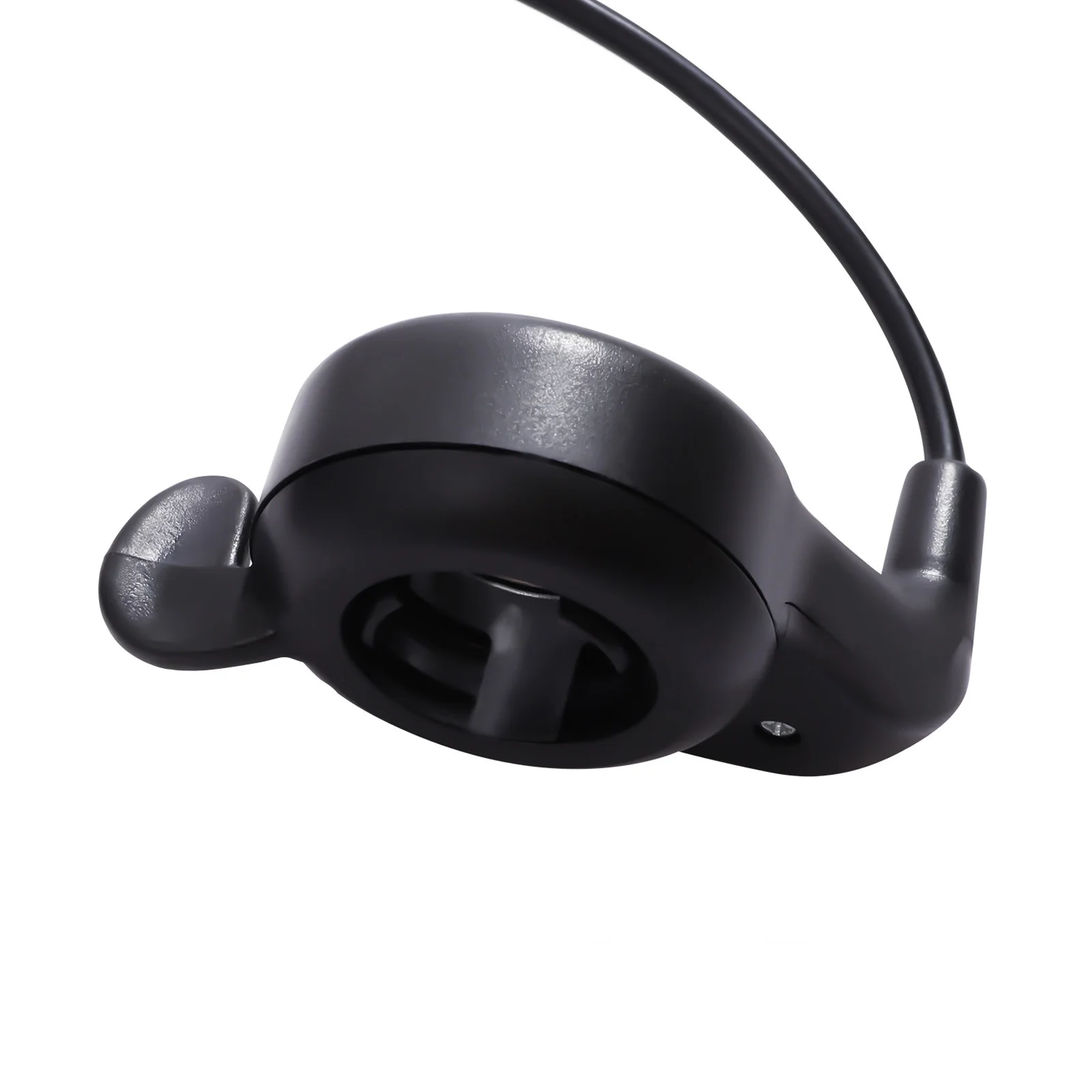

2* Turners
1* Brake Handle
1* Controller Bag
1 Set* Pedal Assistant Sensors

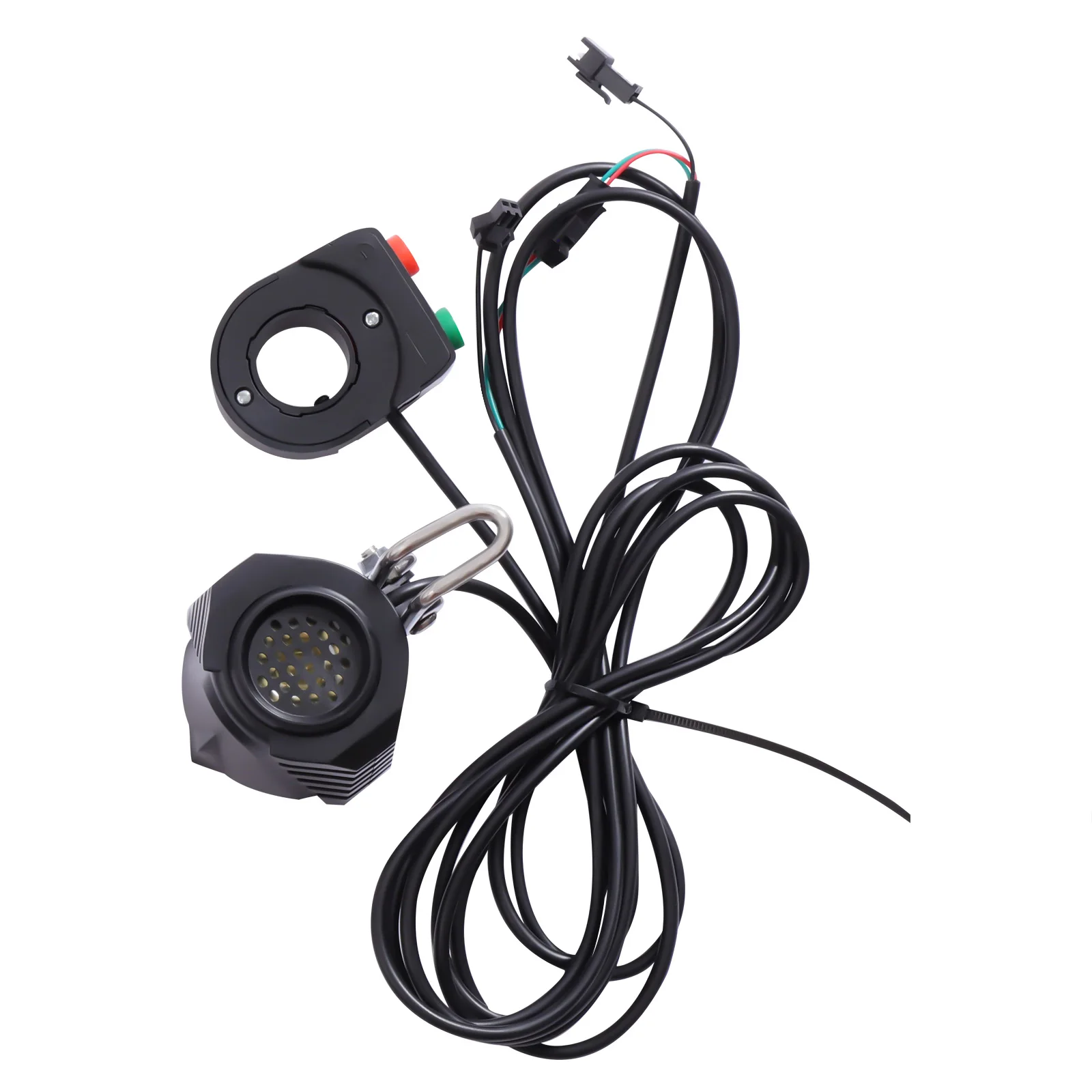

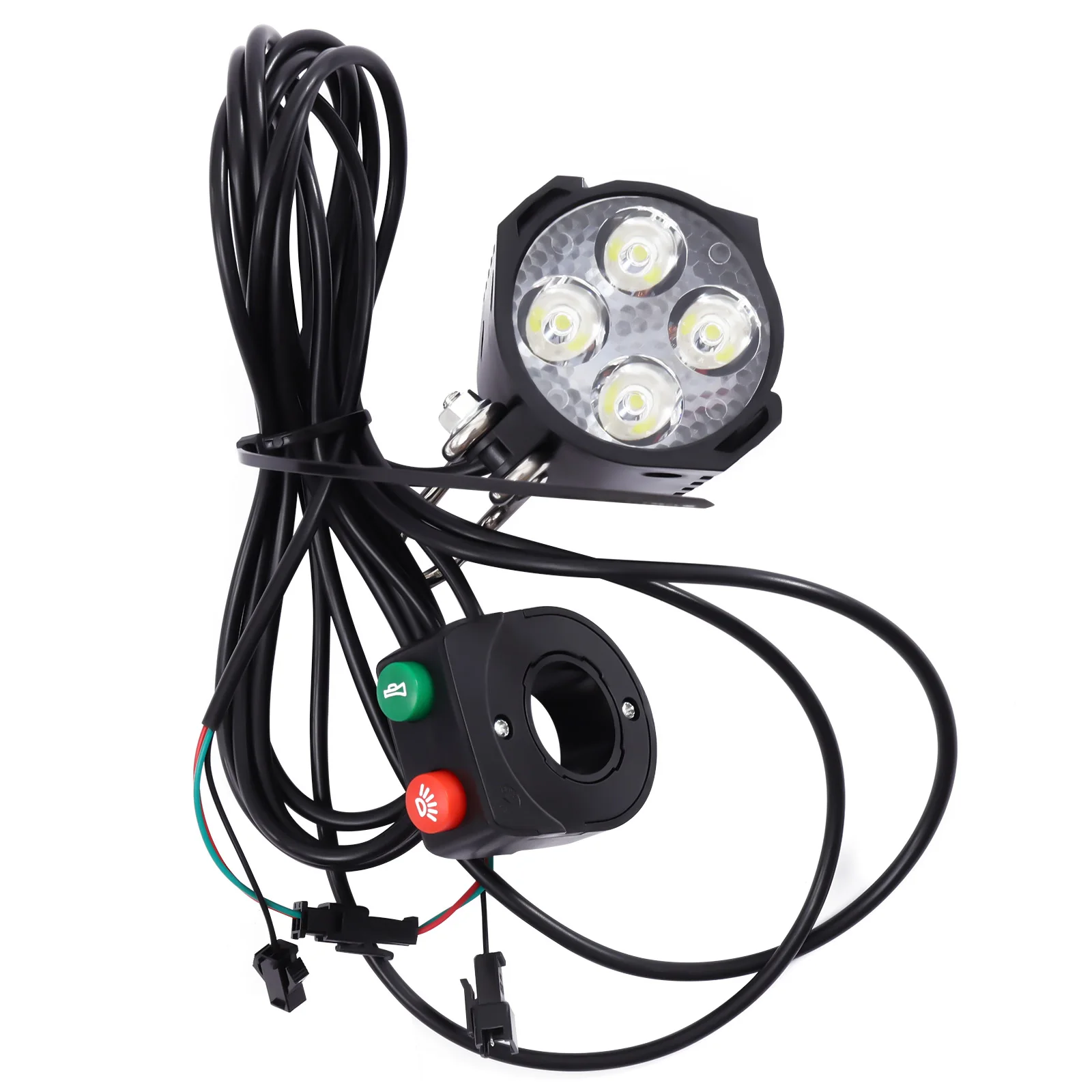

1* Headlight and Horn Switch

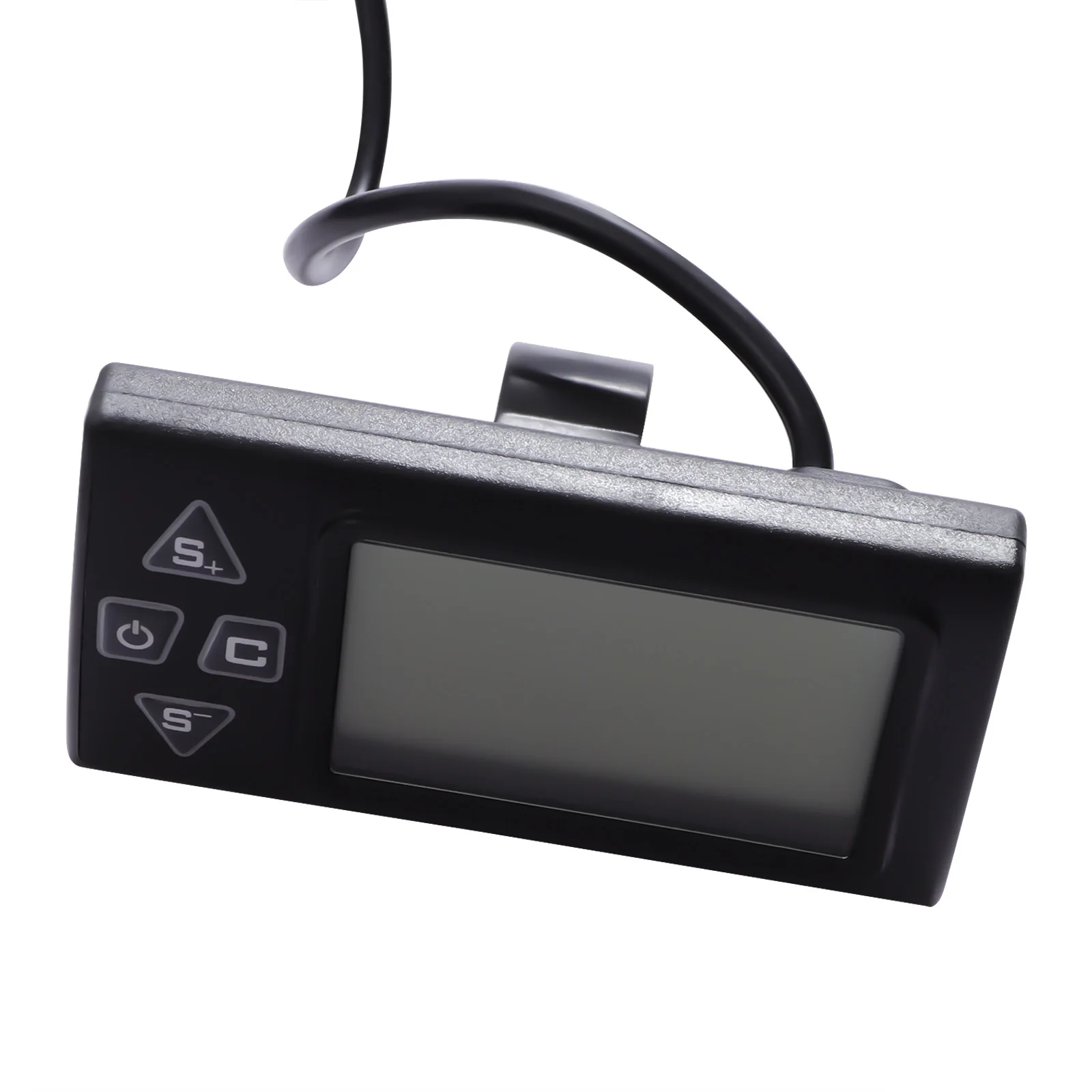

1* LCD Meter

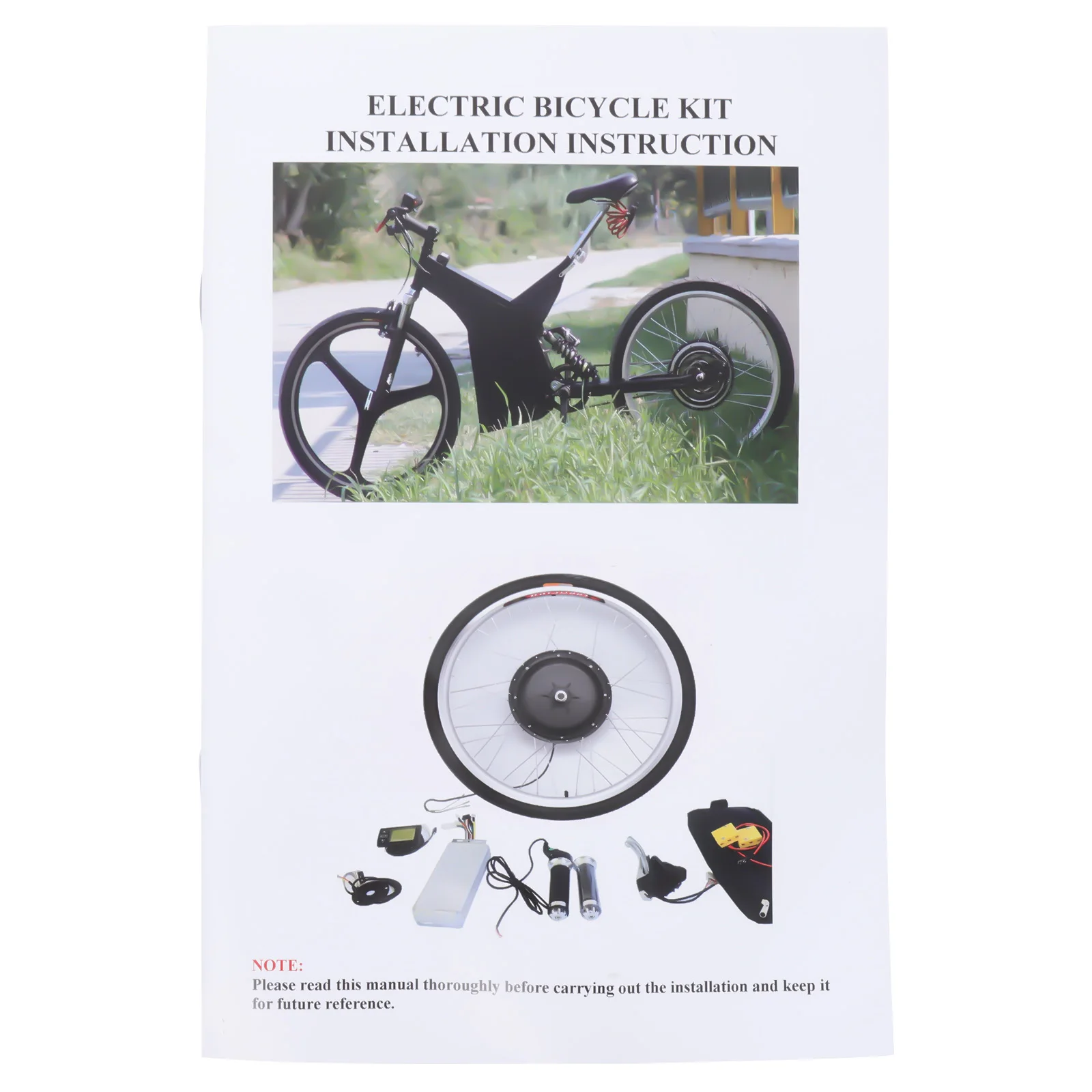

1* English Manual

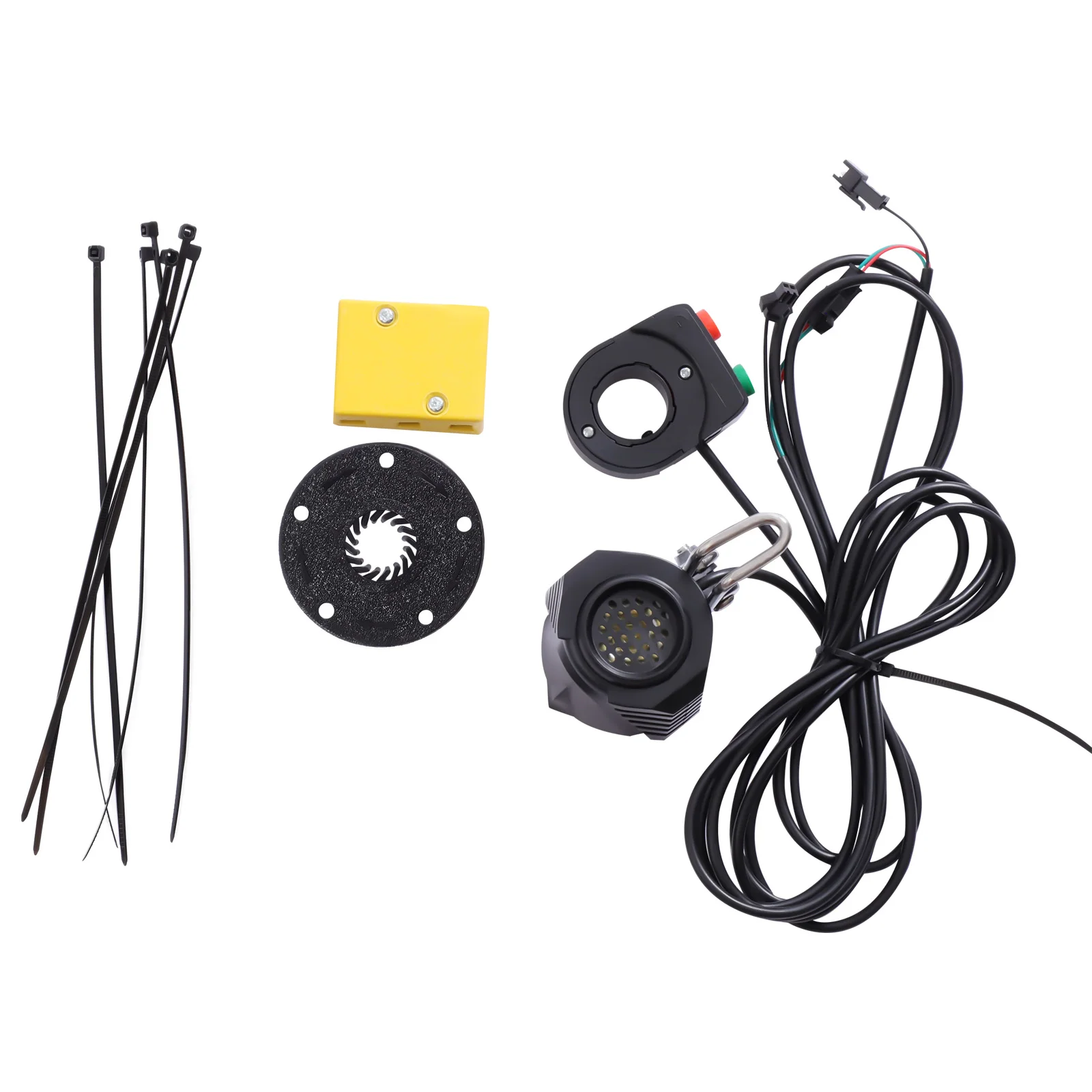

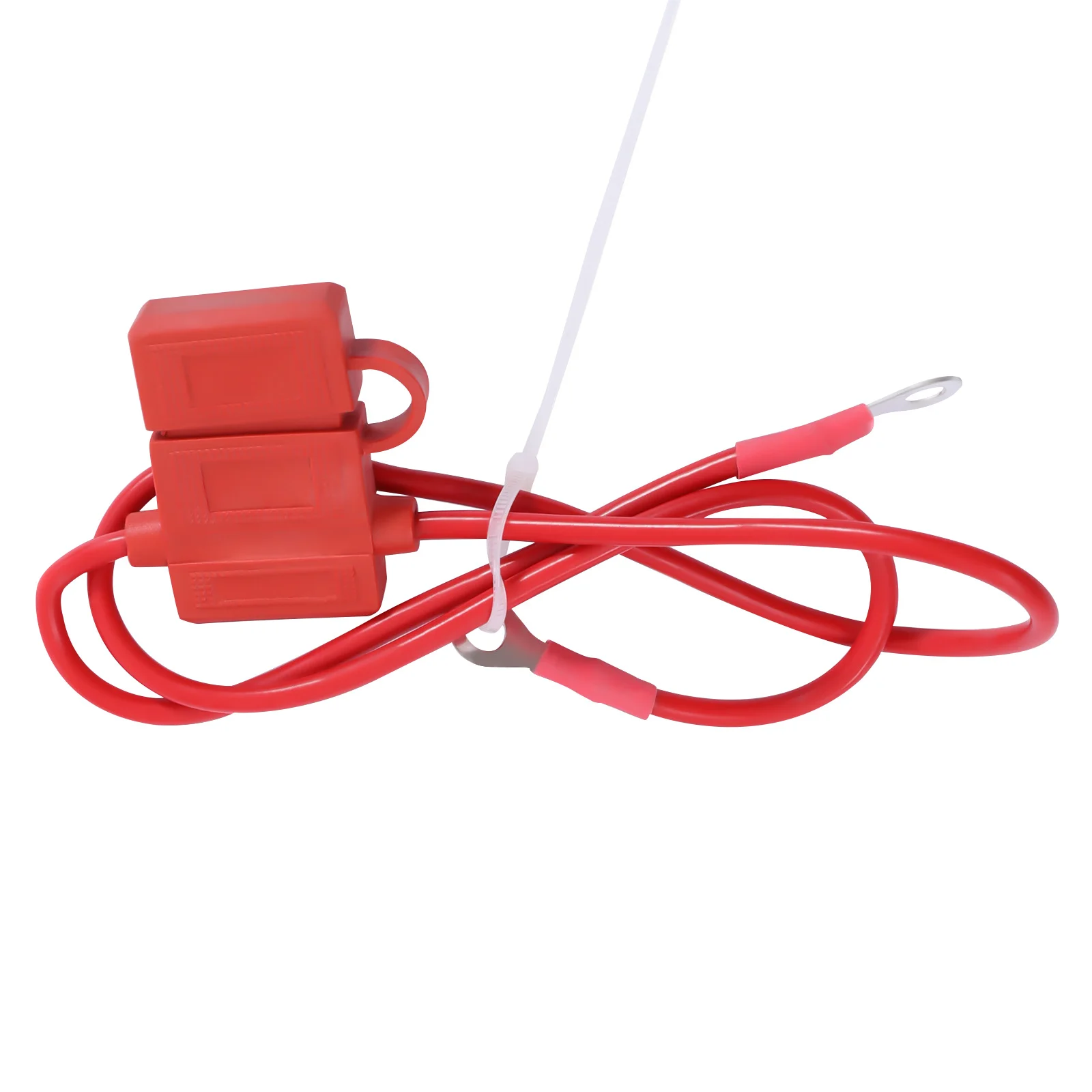

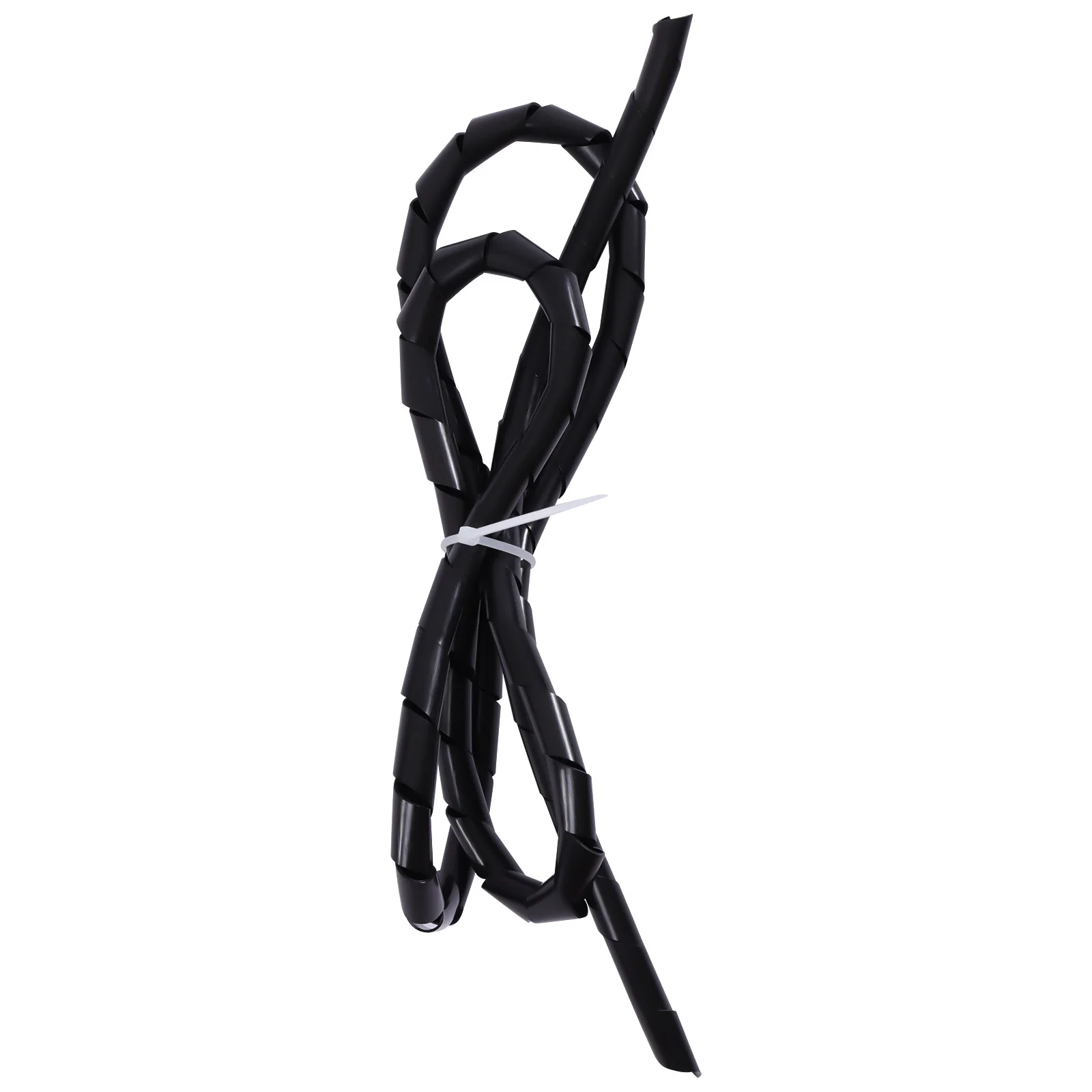

Other Accessories for Assembly

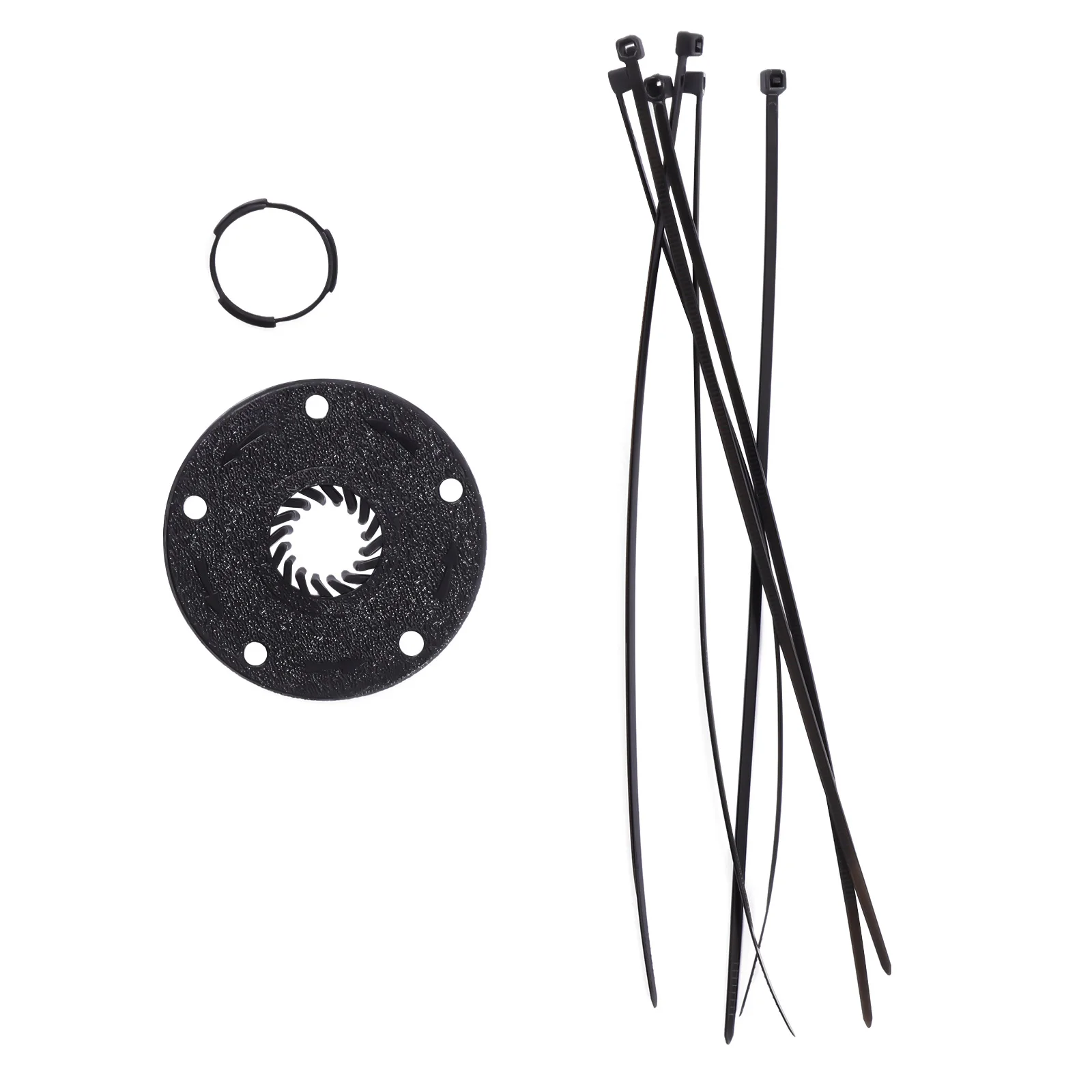

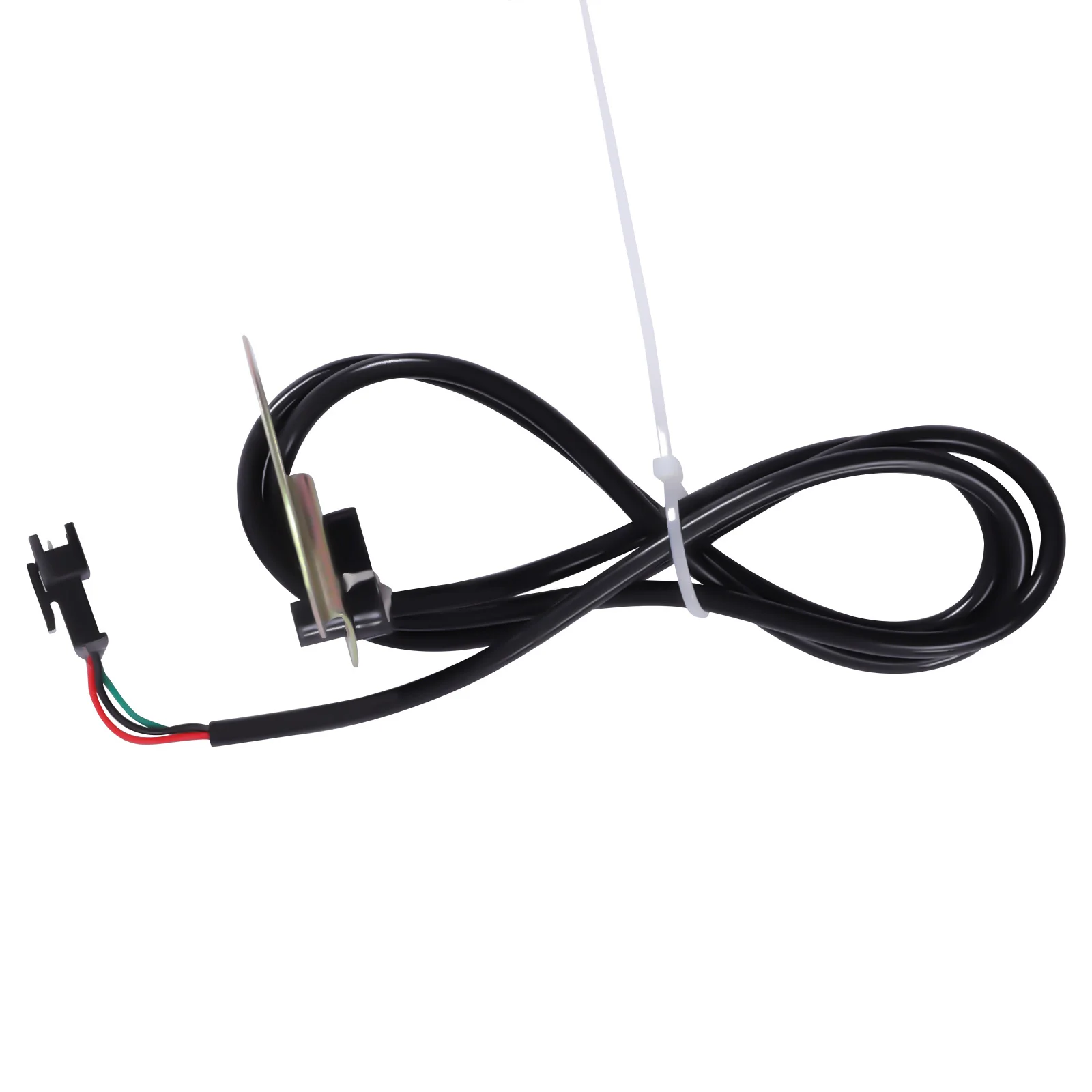

Pedal Assistant Sensor: It senses the rhythm of the pedal and adjusts the speed of the motor accordingly. This helps on long trips and avoids wrist pain caused by constant pressure.

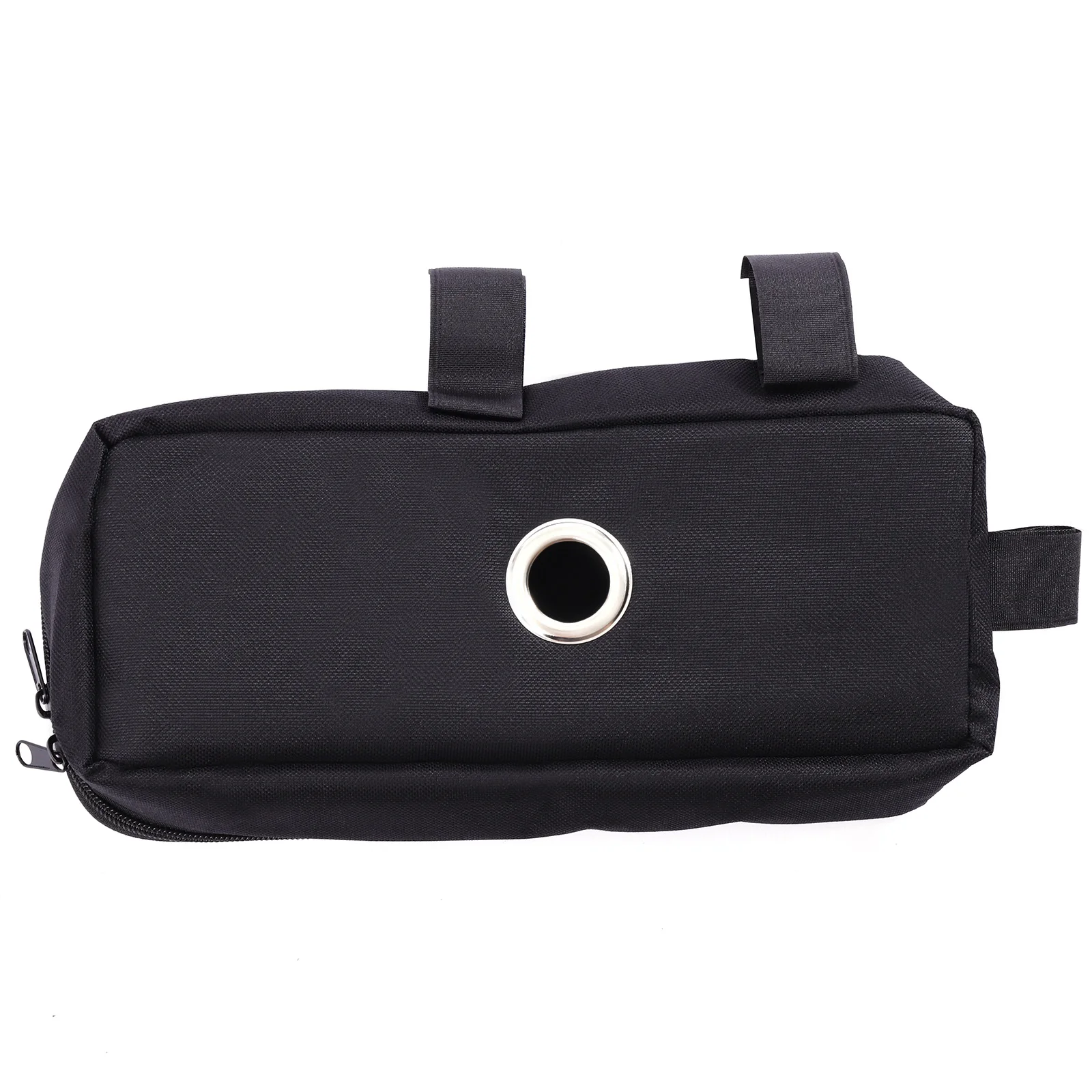

Controller Bag: This can be convenient to store the controller. It is also very good-looking and stylish.
Application
It is suitable for retrofitting the front wheel of a two-wheeled snow bike.It is suitable for bikes with 20-inch tires.
Description
This electric bike conversion kit is made of high-quality aluminum, iron, copper, and magnet steel, which is strong, durable, wear-resistant, and not easy to deform. This product can convert ordinary bicycles into electric bicycles, so that you can feel the speed of the wind and climb hills without difficulty, giving you a good riding experience. You deserve it!
Key Features
High-quality Materials: This product is made of high-quality aluminum, iron, copper, and magnet steel, which is strong, durable, wear-resistant, and not easy to deform.
Fast Speed: The brushless gear series hub motor makes this product have a maximum no-load speed of 28km/h and a maximum load speed of 24km/h, allowing you to enjoy the exciting experience of riding at a high speed.

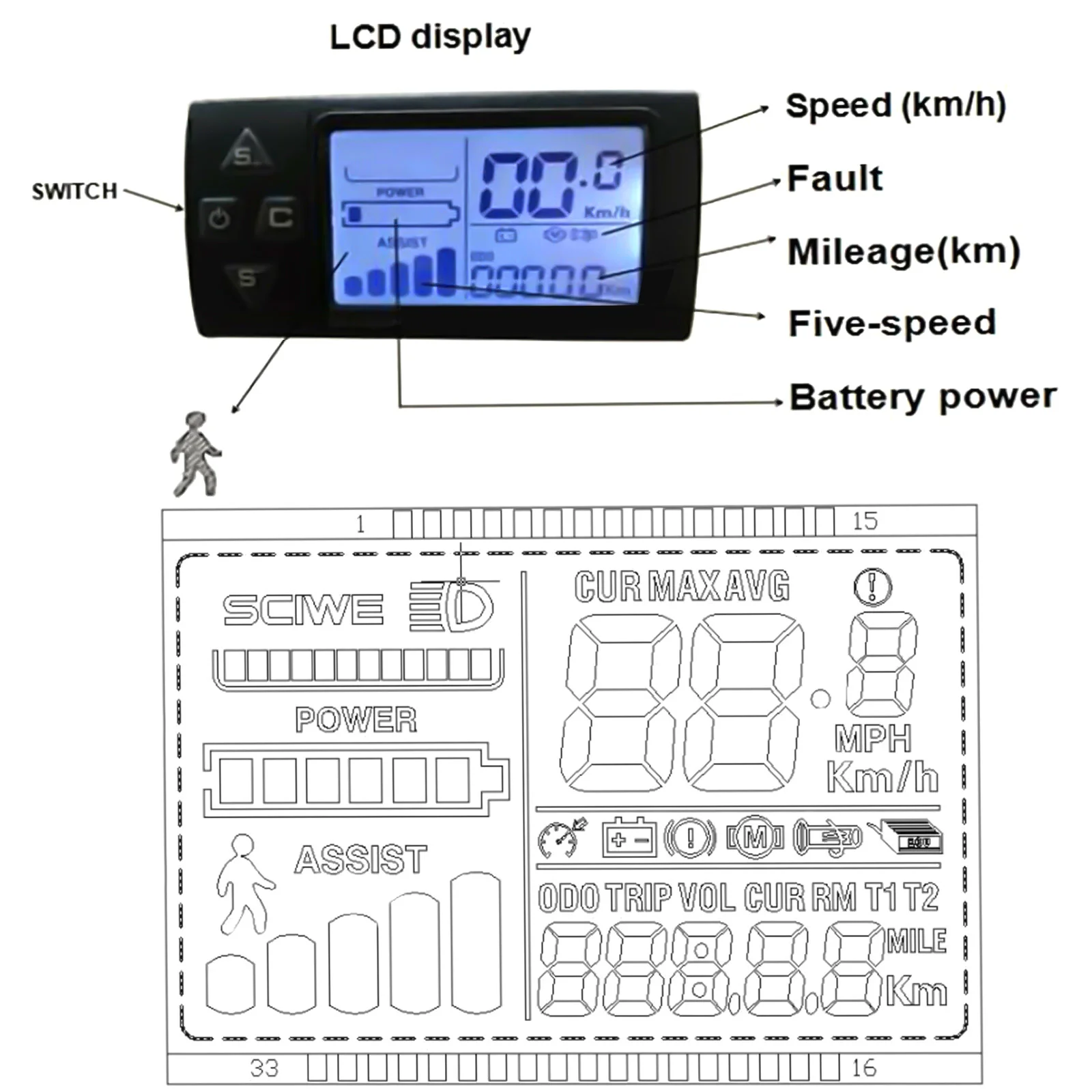

LCD Function: The LCD meter has the function of fault display, speed display, mileage display, five-speed booster speed control, and battery power display, so you can grasp the status of the bike in time.
Low Noise: The brushless gear motor produces low noise when used, which can create a quiet environment for you.
Adjustable Speed: It has five gears to adjust the speed, which can bring you an unprecedented riding experience.
Excellent Performance:It has a high efficiency of more than 82%, which can save you a lot of electricity. Moreover, the brushless gear motor produces low noise when used, which can create a quiet environment for you.
Labor-saving: You don’t have to pedal your bike laboriously anymore with this product and only need to gently rotate the turner to control the speed flexibly, which is very labor-saving and convenient.
Easy to Install: The structure of the product is simple and the accessories are complete. You only need a few simple steps to install it, which is very simple and convenient.
Guaranteed Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Notes
1. This set does not include tires and needs to be purchased by the customer. The suitable tire size is 20*1.75-2.125inch.
2. The speed is related to wheel size, road condition, battery condition, guest load, wind Speed, and other factors.
3. It is suitable for the front wheel of a two-wheeled bike. It cannot be used for three-wheelers or multi-wheelers.
4. Please prepare a lead-acid battery or lithium battery of corresponding voltage in advance.
5. Please make sure a solid connection between the motor and the controller.
6. Please make sure that the inner core of each plug is not damaged, broken, or bent.
7. If your kit has been in use for a while and then suddenly stops working. It could be that your motor plug is soaked in water. Please unplug it and let it dry. Then put it back in place and it will work fine.
8. You need to connect the machine correctly and firmly during installation so that the product can work properly. If there is a mistake during the installation process, the product will not work properly. After the installation is completed, you can check whether the error code is displayed on the LCD screen.
9. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
10. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
